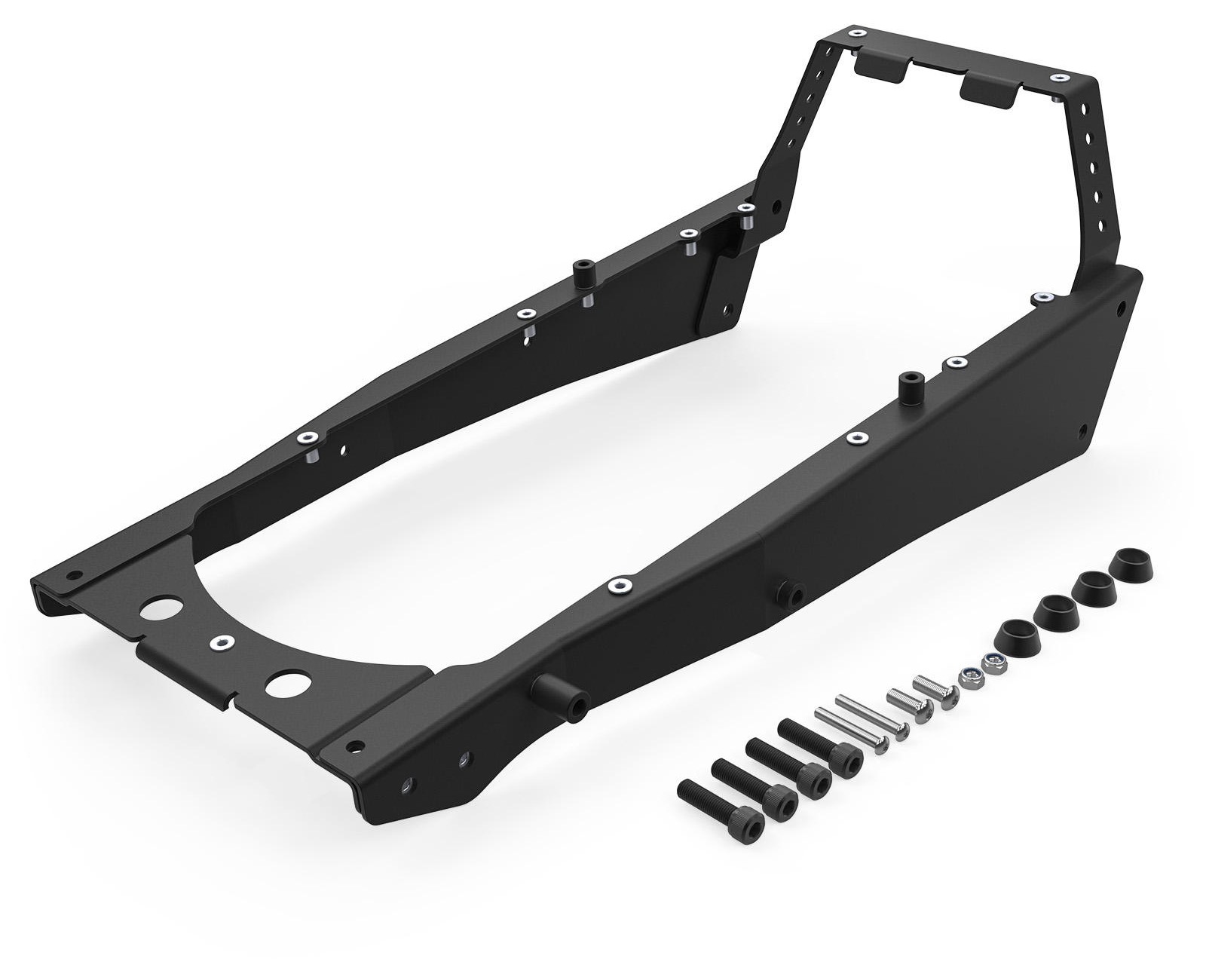

subframe

Product introduction

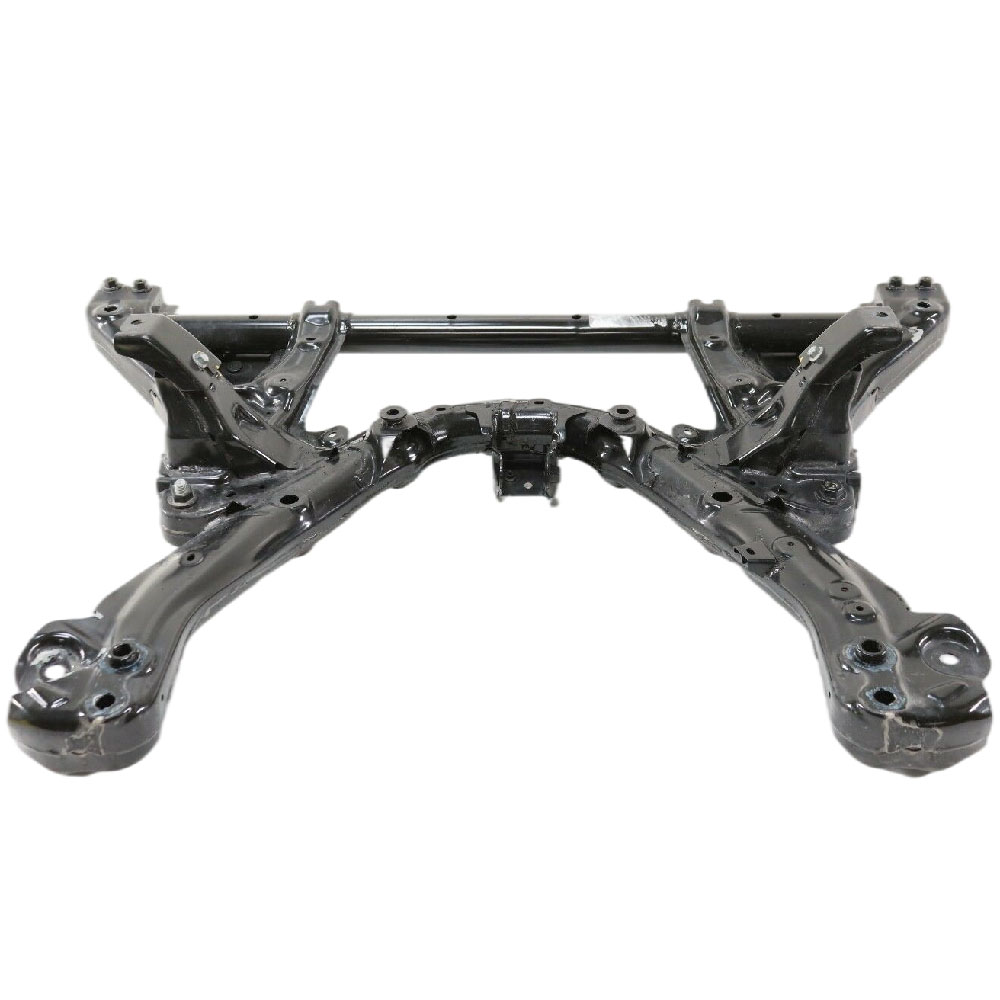

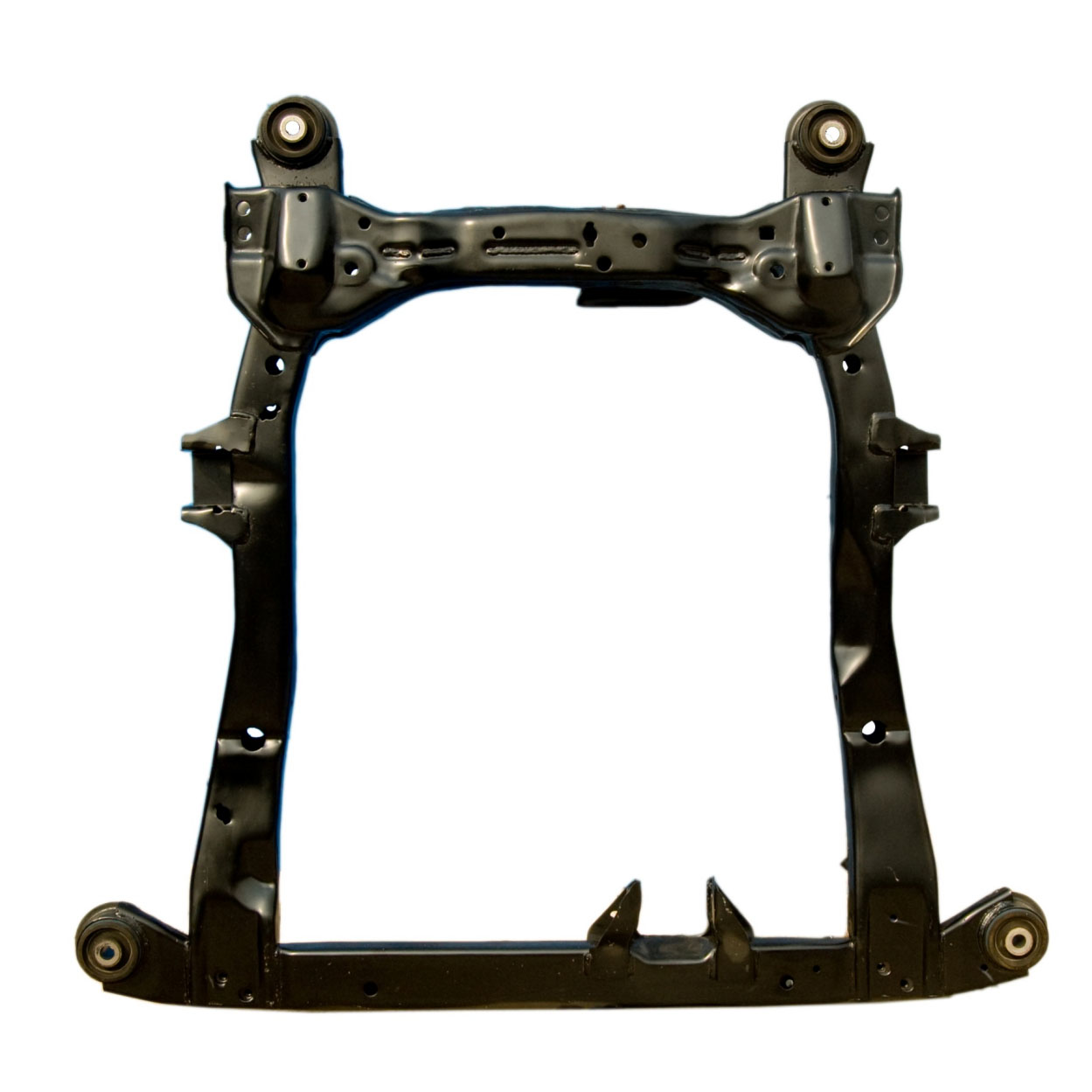

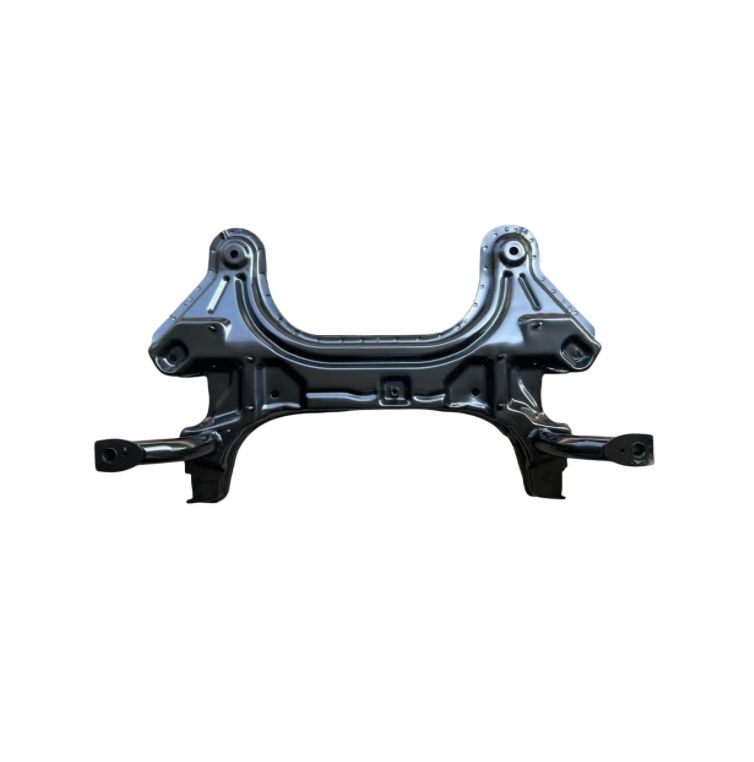

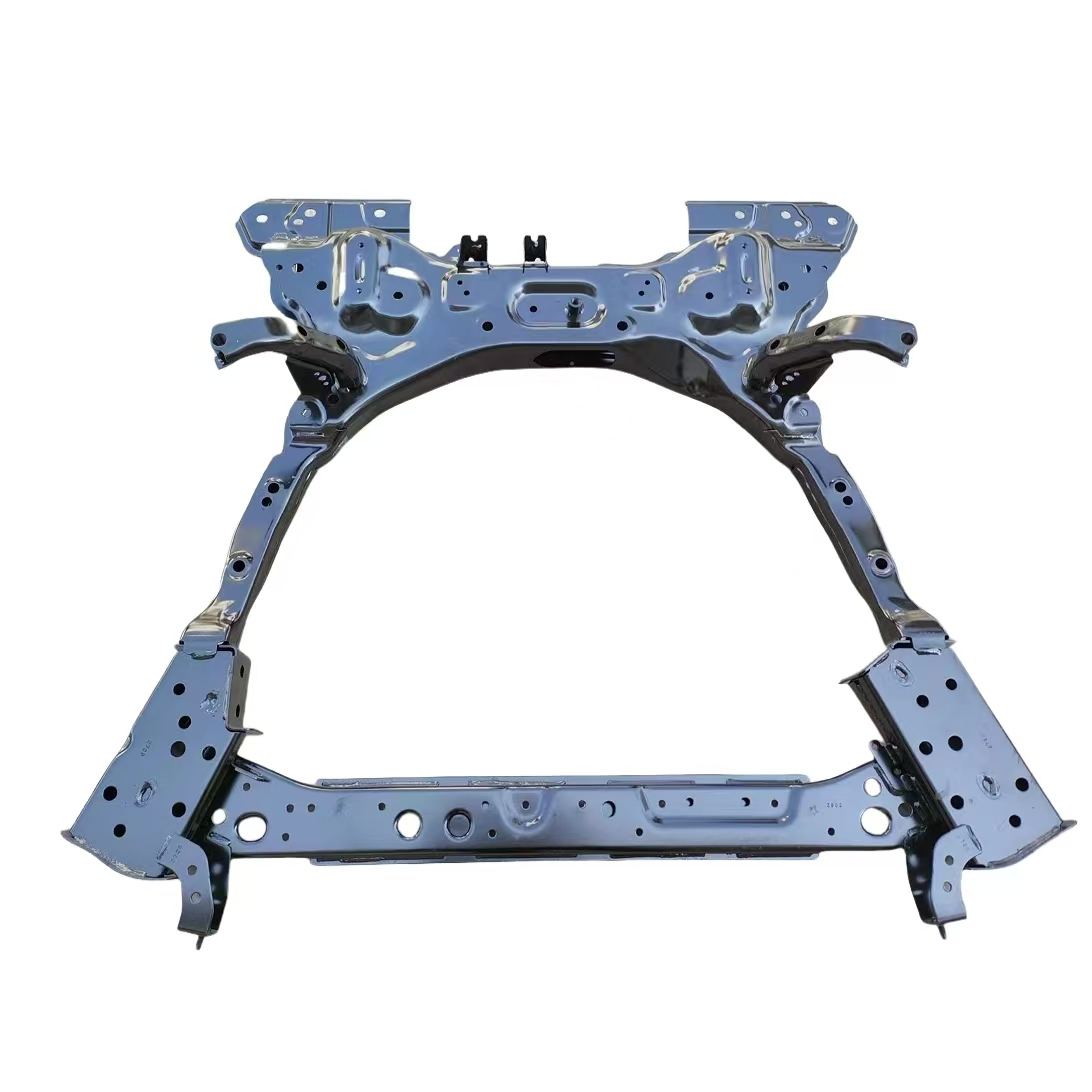

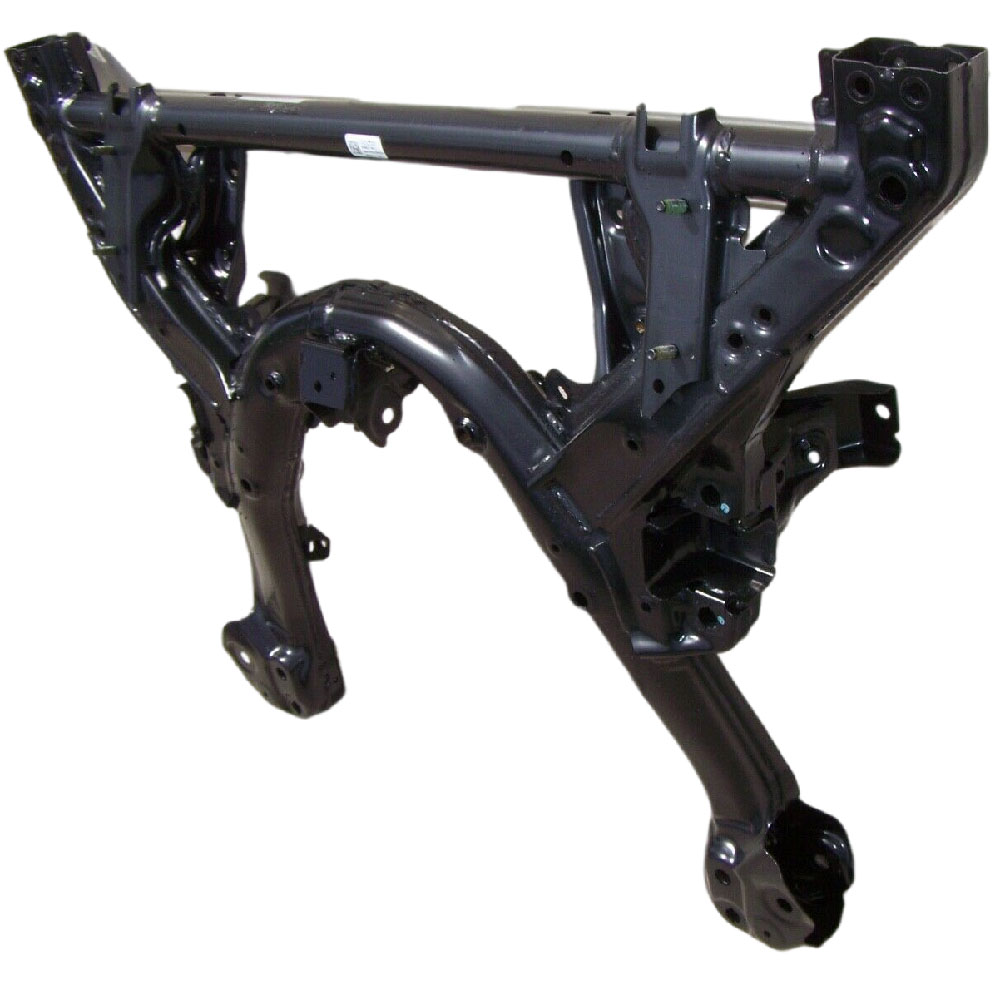

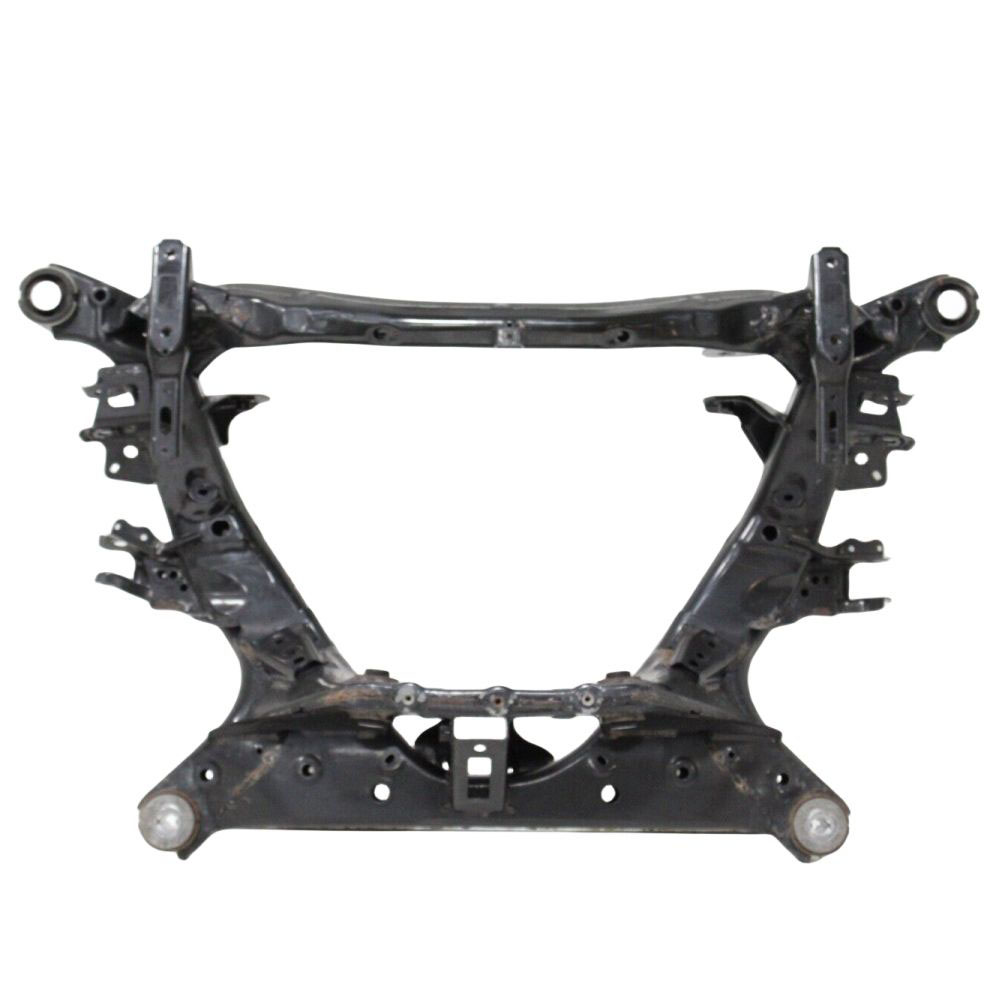

HY's subframe achieved a high degree of functional integration during the development process, and multiple connection points were designed to accommodate the installation needs of control arms, struts, stabilizers and electric drives, while ensuring a solid connection between the components and the body.

By integrating hollow profiles in the die-casting process, a closed cavity is created, which, combined with the topology-optimized design of the upper casing, fully meets the strength, stiffness and NVH (noise, vibration and harshness) requirements.

In addition, the overall design concept of rear subframe designed by HY simplifies the traditional complex connection process and reduces the production and assembly process of a single component, thereby significantly reducing production costs.

HY uses 3D sand printing technology and RWP casting simulation software to conduct casting system design, mold filling and solidification analysis to optimize the production process. In this way, detailed simulation and prediction can be carried out before production, effectively shortening the construction period and improving production efficiency. The subsequent steps of sand mold splitting, 3D printing and box-joining casting ensure that the final subframe parts are of high quality and precision.

The use of 3D printing and casting means that the research and development of subframe cars is not limited by traditional molding methods, and the design can be changed many times during the development process and prototypes can be quickly produced. This advantage not only speeds up the cycle from product design to production, but also enables new energy vehicle-related companies to quickly respond to market changes and seize opportunities.

HY has full-process service capabilities from model trial production to batch sample casting and precision machining. Relying on advanced 3D sand printing technology and professional RWP casting simulation software, the company provides fast and high-quality casting services to many companies around the world. Its product line covers engine blocks, cylinder heads, volutes, impellers, intake and exhaust manifolds, new energy vehicle motors and other fields, demonstrating its strong comprehensive strength and service scope. Customers are welcome to contact us.
